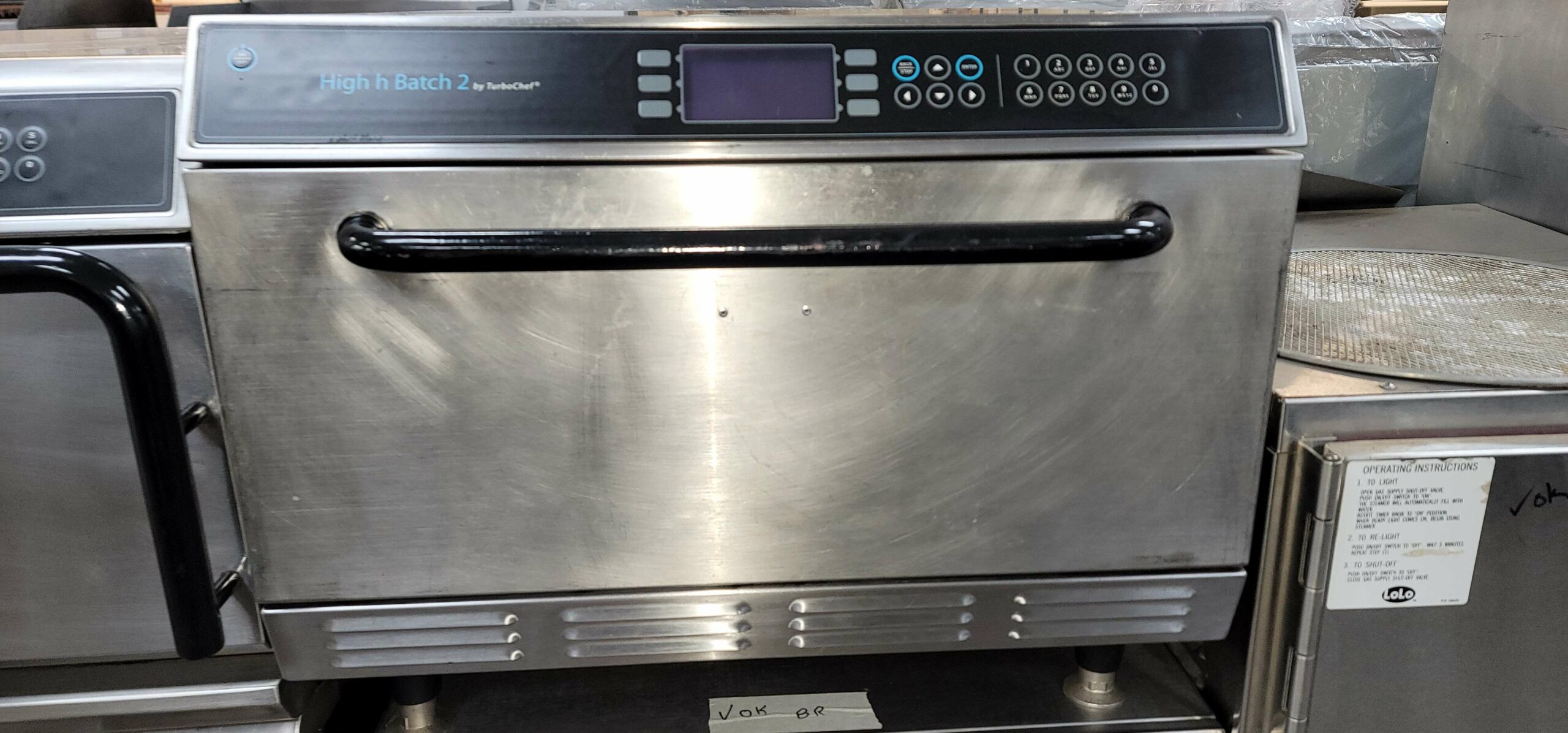

TURBO CHEF HHB2
DIMENSIONS
Single Unit:
Height 20.5′′ (521mm)
Width 25.5′′ (648 mm) Depth 29′′ (737 mm)
with handle 31.5′′ (800 mm)
Weight 157 lbs. (71 kg)

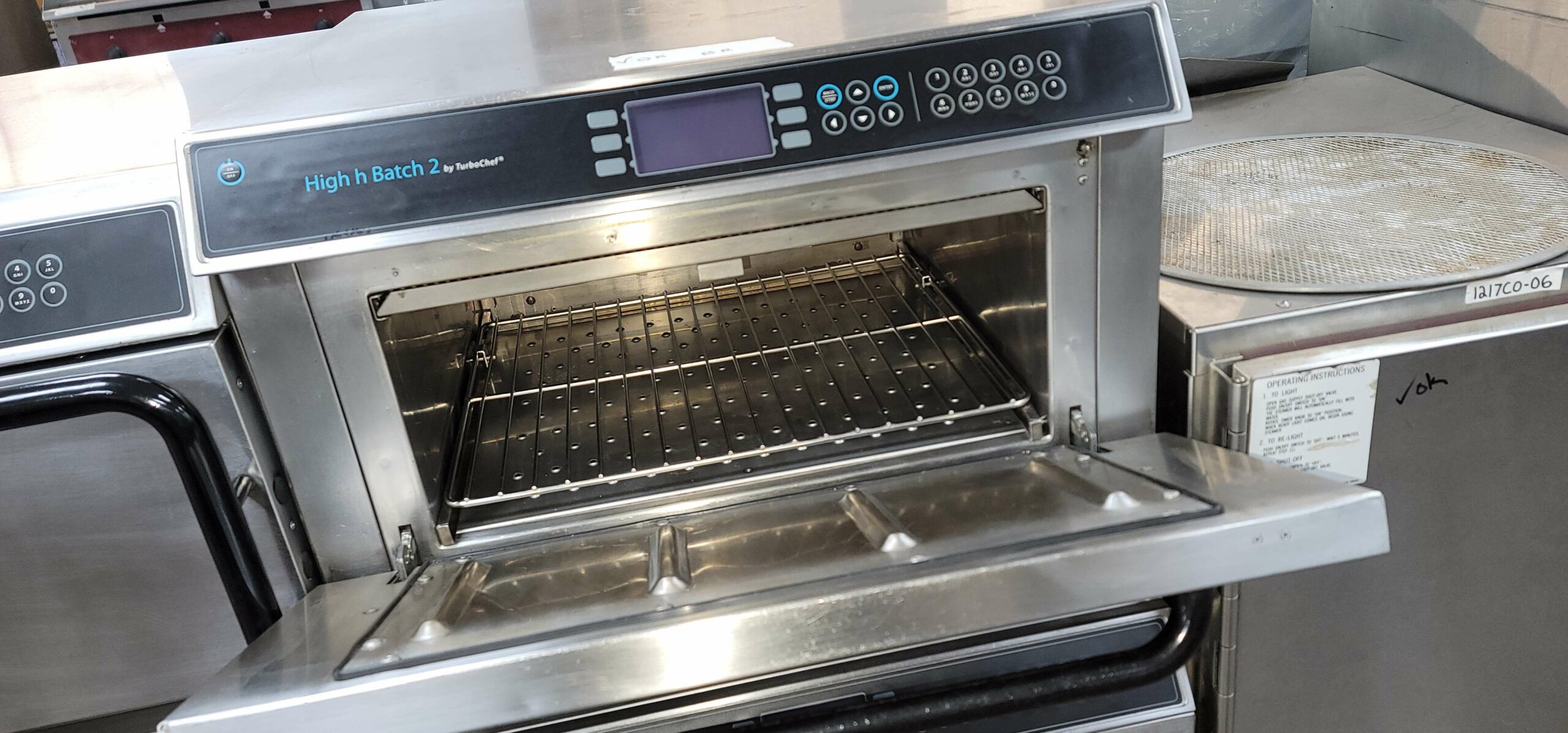

Cook Cavity Height 8′′ (203 mm)
Width 18.75′′ (476 mm)
Depth 16.75′′ (425 mm)
Volume 1.45 cu. ft. (41.1 liters)
Wall Clearance
Top 2′′ (51 mm) Sides 2′′ (51 mm)
CONSTRUCTION
Exterior Stainless steel front, top, sides, and back 4′′ (102 mm) matte black legs
Cool to touch door handle Removable drain pan Removable oven door for cleaning
Interior 304 stainless steel interior Watertight construction Interchangeable jetplates for customized
cooking results (16 possible combinations)

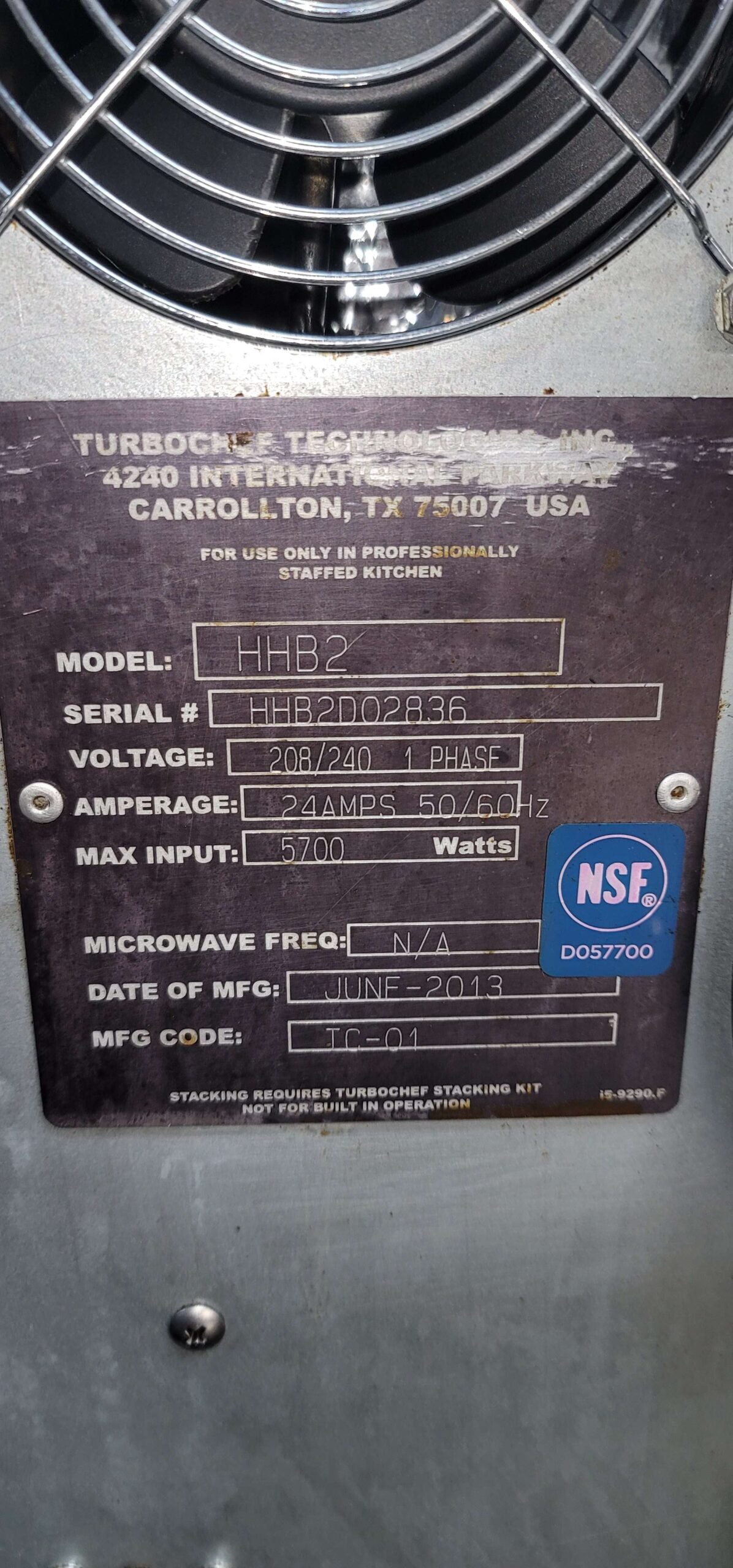

Single Phase
208/240 V
25Amp
